Control Panel S

$79.45 USD

Shipping calculated at checkout.

Description

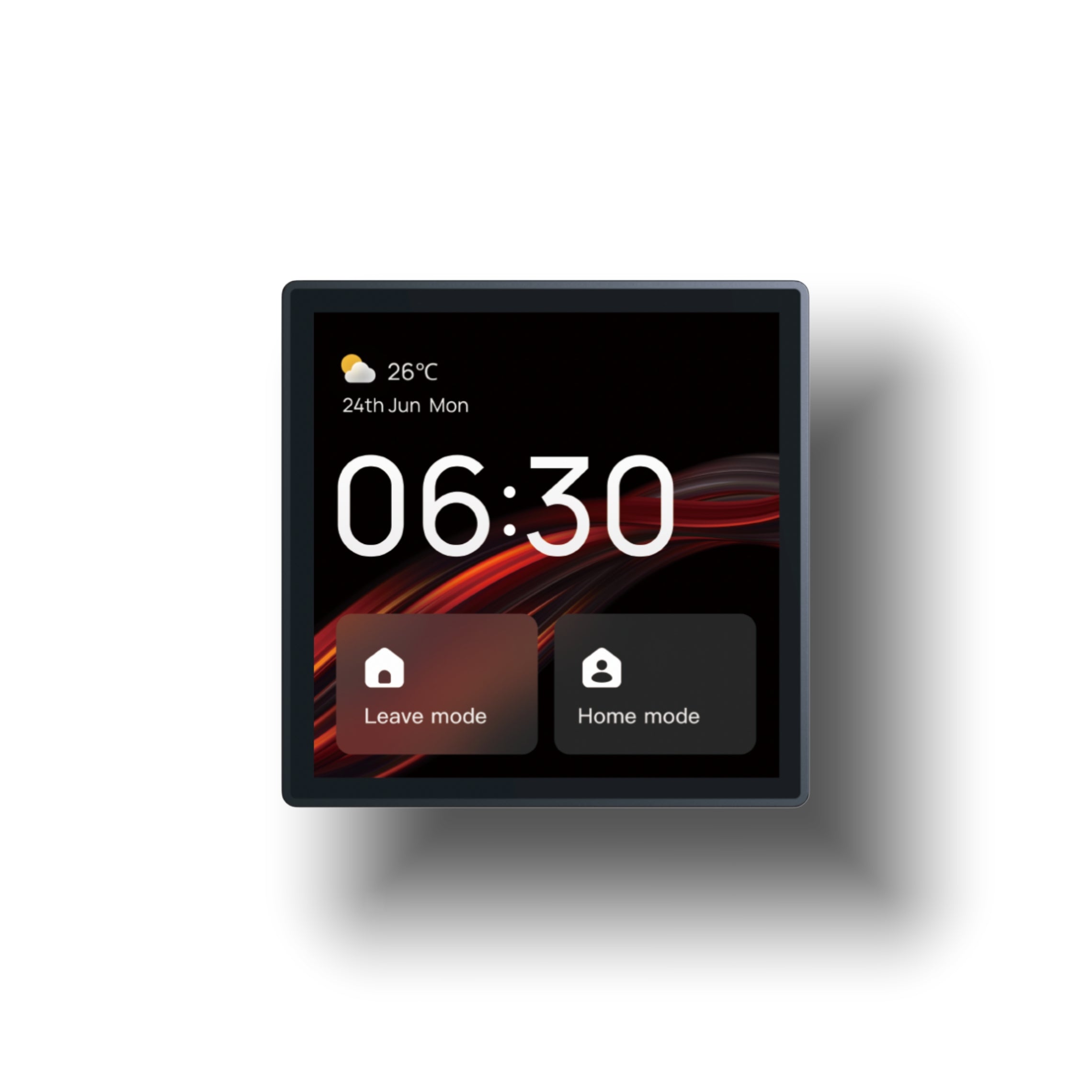

The smart control panel S adopts a 4-inch touch full screen, developed based on the Linux platform, supports the installation of a standard Europe bottom box, can seamlessly replace the switch panel, and integrates Zigbee gateway and Alexa voice service simultaneously. Interact in various ways to help users quickly and conveniently manage smart devices and scenes at home

In stock

Control Panel S

Scroll to section

See how control panel S pro works

4" Linux Touchscreen Hub | Alexa Voice + Zigbee Gateway

Retrofit-Ready Smart Panel | Future-Proof Your Home

Unified Control, Zero Complexity

4" Linux Touchscreen Hub | Alexa Voice + Zigbee Gateway

Retrofit-Ready Smart Panel | Future-Proof Your Home

Unified Control, Zero Complexity

4" Linux Touchscreen Hub | Alexa Voice + Zigbee Gateway

Retrofit-Ready Smart Panel | Future-Proof Your Home

Unified Control, Zero Complexity

4" Linux Touchscreen Hub | Alexa Voice + Zigbee Gateway

Retrofit-Ready Smart Panel | Future-Proof Your Home

Unified Control, Zero Complexity

4" Linux Touchscreen Hub | Alexa Voice + Zigbee Gateway

Retrofit-Ready Smart Panel | Future-Proof Your Home

Unified Control, Zero Complexity

4" Linux Touchscreen Hub | Alexa Voice + Zigbee Gateway

Retrofit-Ready Smart Panel | Future-Proof Your Home

Unified Control, Zero Complexity

4" Linux Touchscreen Hub | Alexa Voice + Zigbee Gateway

Retrofit-Ready Smart Panel | Future-Proof Your Home

Unified Control, Zero Complexity

Zigbee Gateway: Integrate the Zigbee gateway function, which can replace the Zigbee gateway at home, and has the edge capability of local control
Alexa Voice Service: Alexa Built-in，Support IoT control and Alexa voice skills

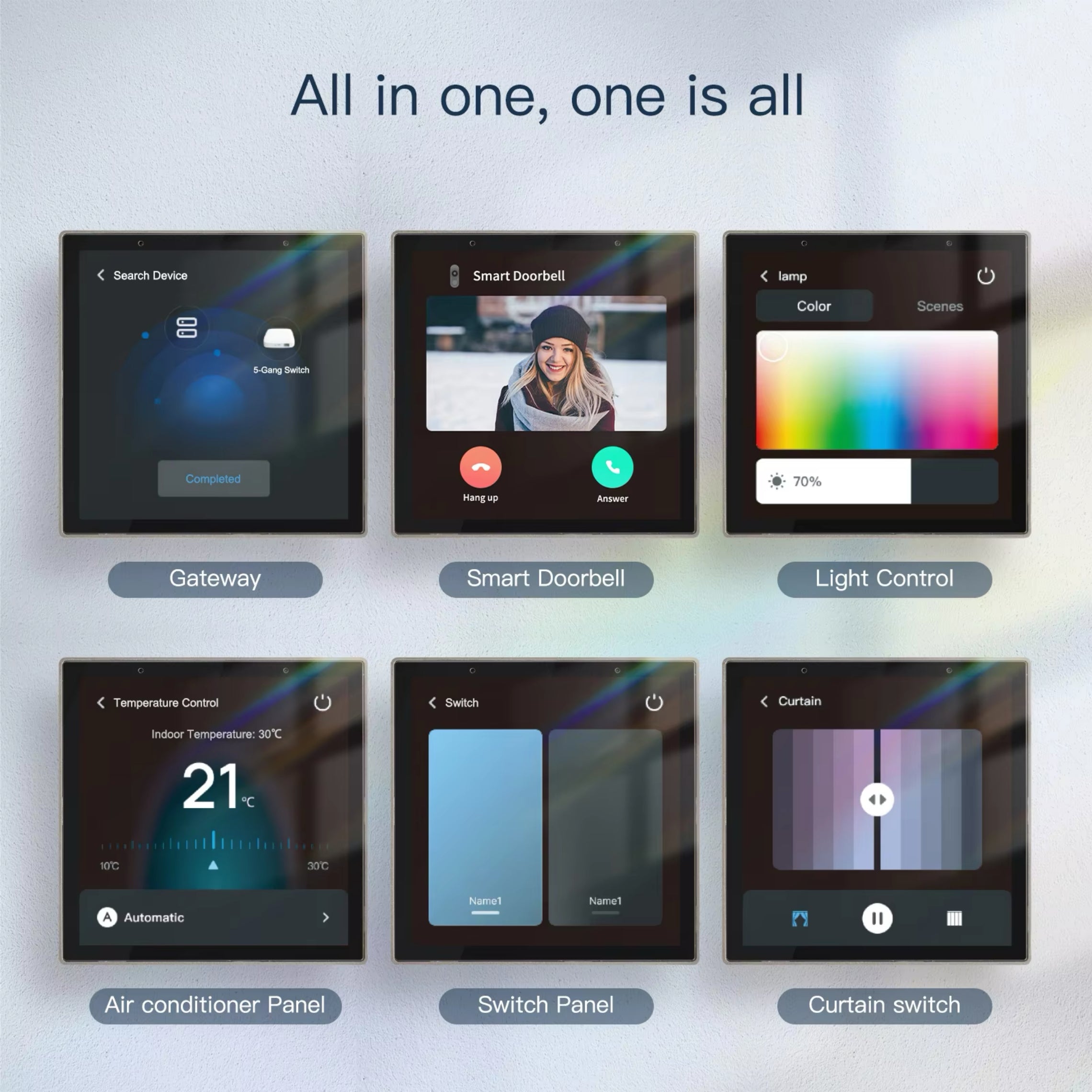

Device Control: Multi ways of device control like: touch screen, app control and voice control, compatible with most Tuya ecological devices.
Scene Control: Both screen interaction and voice interaction can trigger scene control in order to meet different needs in life
Easy Installation: Wire installation, using the standard European standard base to complete the home automation upgrade
Easy Setup: Scan the code to log in, interact with the app, one-time configuration

CPU: Rockchip RK3308, Linux
Power: 100~240VAC,50/60Hz
RAM: 1GB, ROM 8GB
Screen: 4 inch 480*480 Multi-touch
Bluetooth: Mesh
WiFi: 2.4GHz, 802.11b/g/n 150Mbps
Zigbee: Zigbee 802.15.4 PHY/MAC network protocol stack
Working voltage：100-240V
Operating temperature：0-40℃
Working humidity：5%-90%RH Non-Condensing
Communication method：Zigbee,Wi-Fi, Bluetooth Mesh
Function：Built-in Alexa voice service, Multimode Gateway, Smart scene ,One-click execution of preset without frequent openations

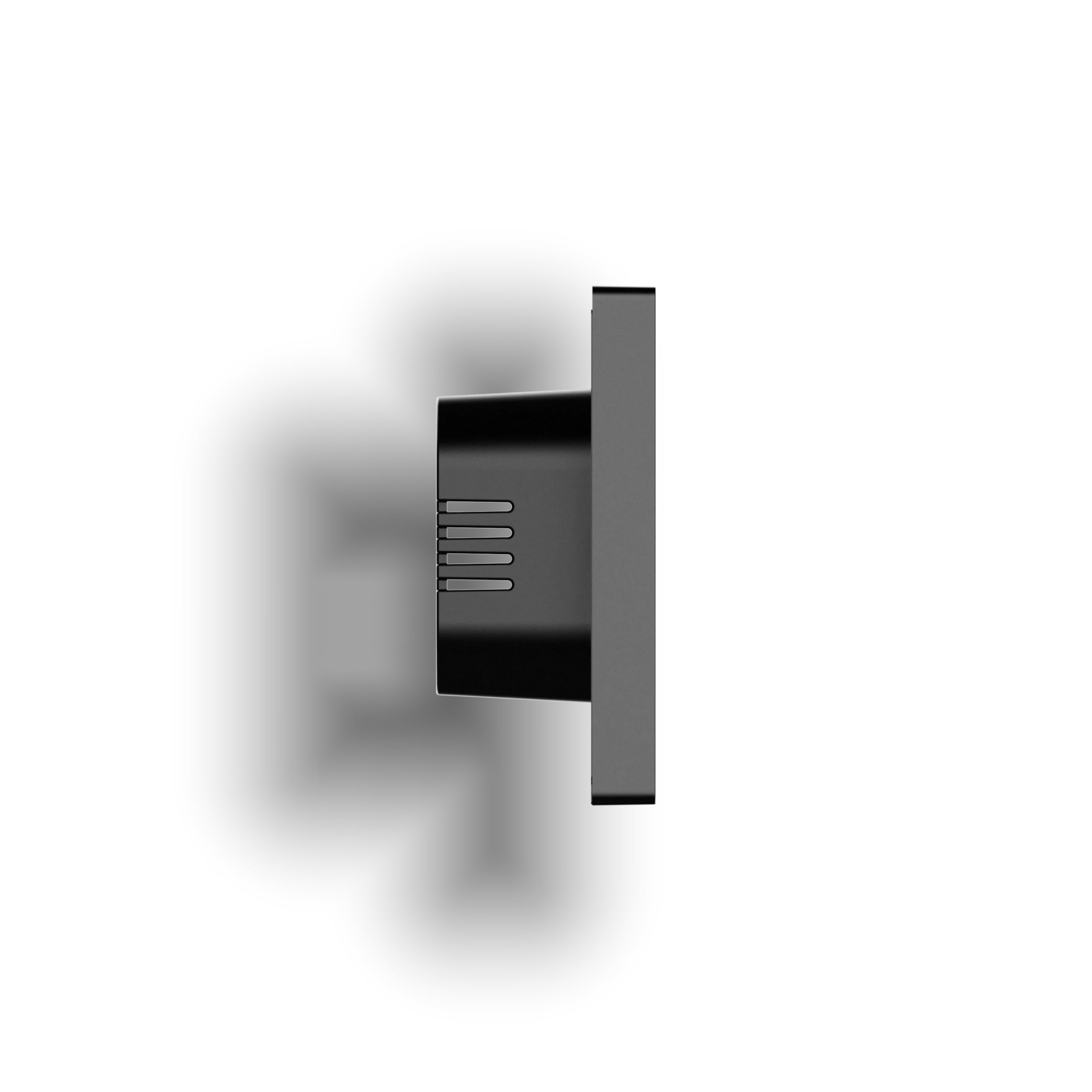

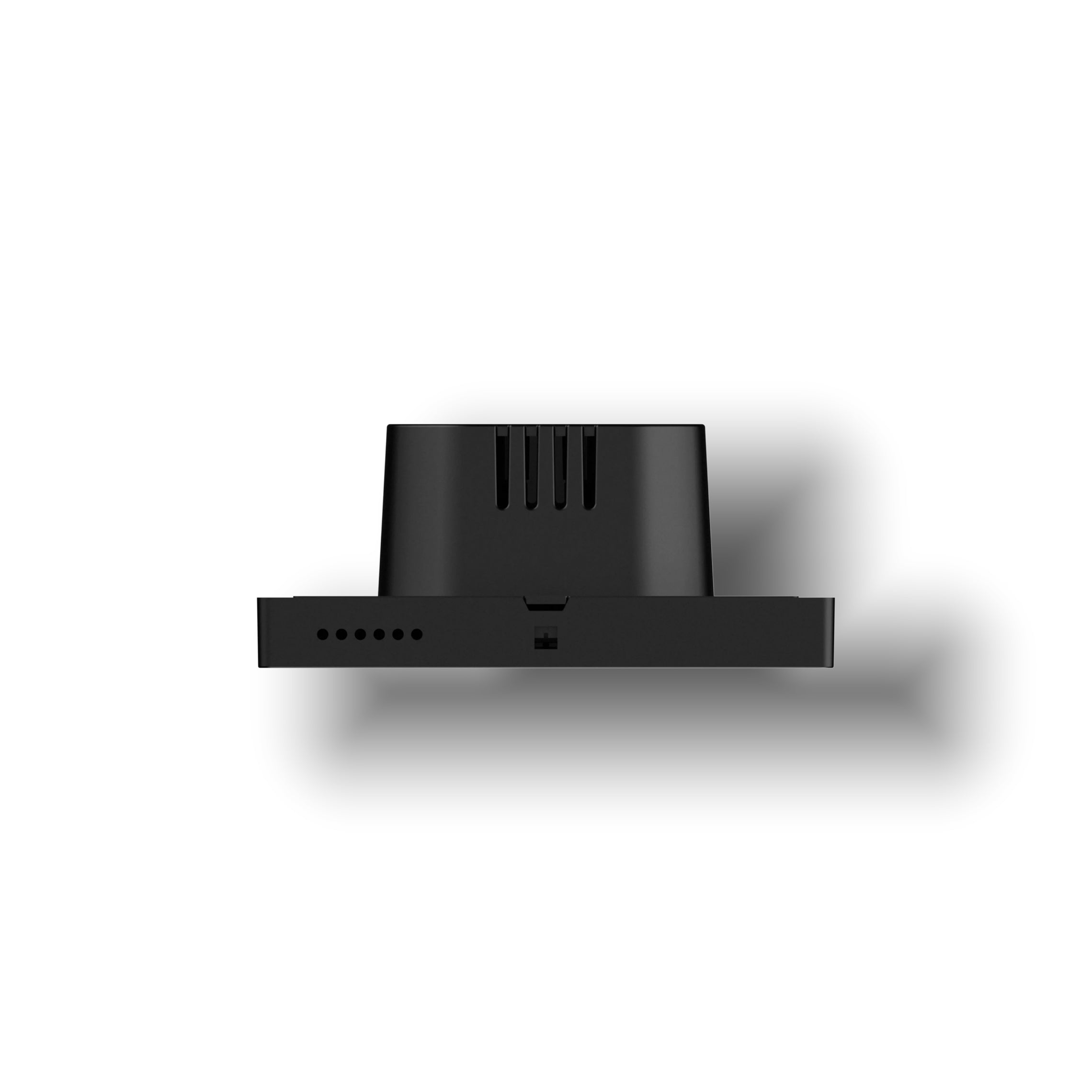

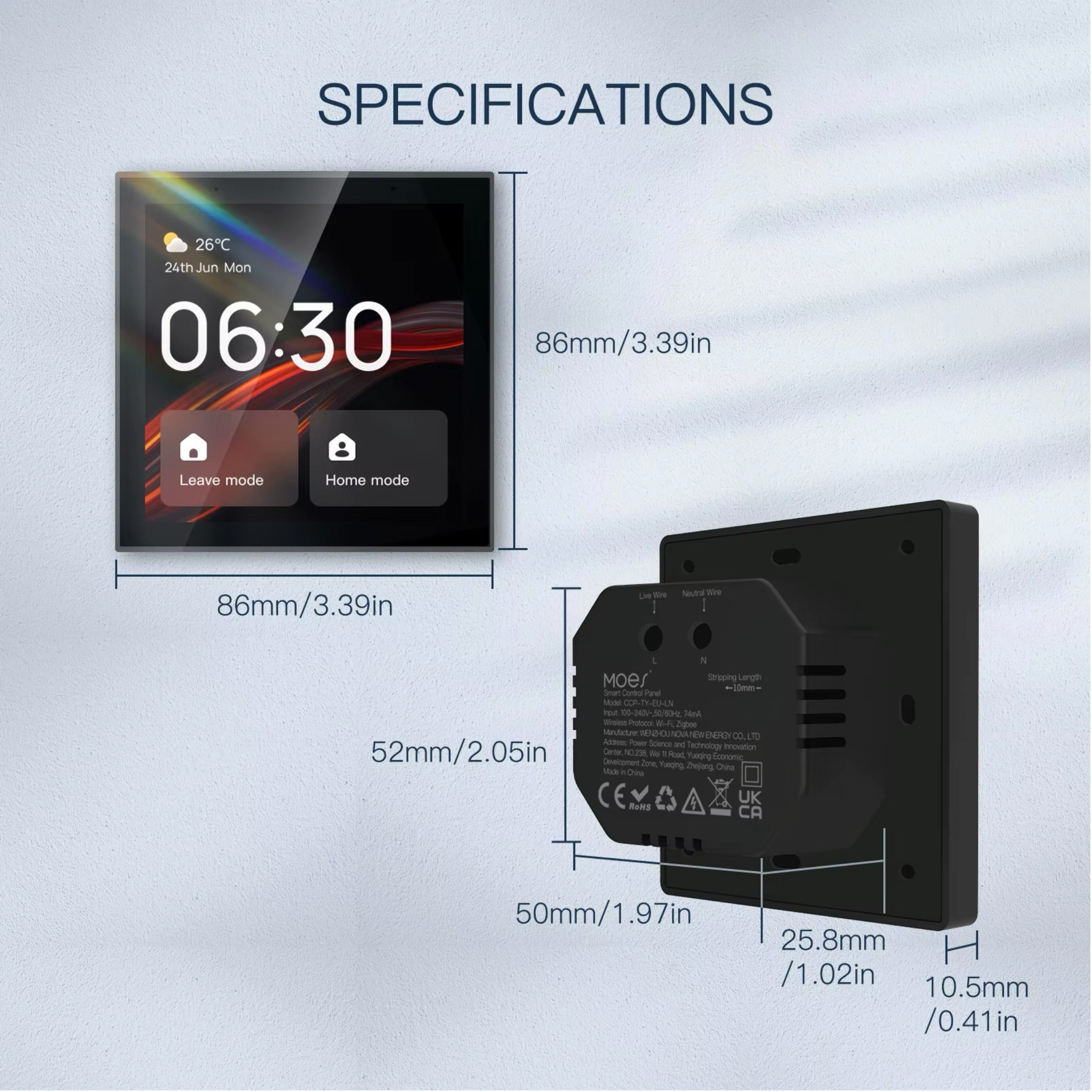

Size: 86x86x10mm (without the base); 86x86x36.6mm (with the base)

The Smart Control Panel S features a 4-inch touch screen, runs on Linux, and fits standard European bottom boxes for easy switch panel replacement. It integrates a Zigbee gateway and Alexa voice service, enabling seamless interaction for efficient smart home management.

More features

Product comparison

Control Panel S

Current

Xcessmart

Control Panel S

$79.45 USD

Options

In stock

Descriptions

The smart control panel S adopts a 4-inch touch full screen, developed based on the Linux platform, supports the installation of a standard Europe bottom box, can seamlessly replace the switch panel, and integrates Zigbee gateway and Alexa voice service simultaneously. Interact in various ways to help users quickly and conveniently manage smart devices and scenes at home

FAQs

It can support WiFi connection and Ethernet LAN connection. When there's no wifi network,LAN connection is a good connection method.

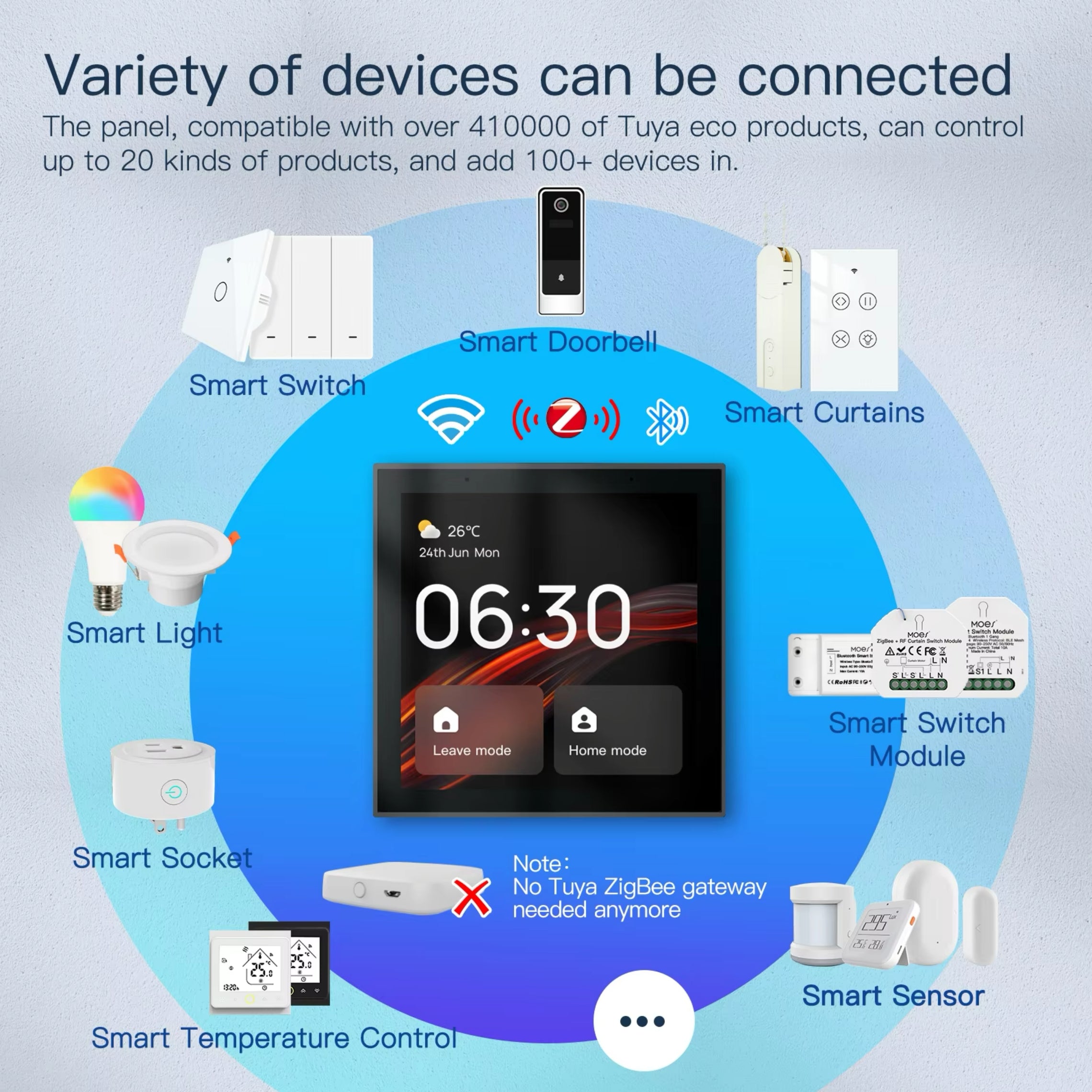

It supports 100+ zigbee sub-devices, such as ZigBee wall switch, ZigBee Socket, ZigBee video doorbell, ZigBee curtain motors,Zigbee bulbs, ZigBee dimming driver, Zigbee door sensor, zigbee motion sensor, ZigBee breakers, etc.

Yes,it can support Tuya Zigbee temperature controller and display on touch screen LCD.

It is used linux system

Yes, it's not only support Google home Assistant, but also support built-in Alexa voice control function.

Yes, this product comes with CE certificates.
