Smart Fan Coil Unit Thermosat
Shipping calculated at checkout.
In stock
Description

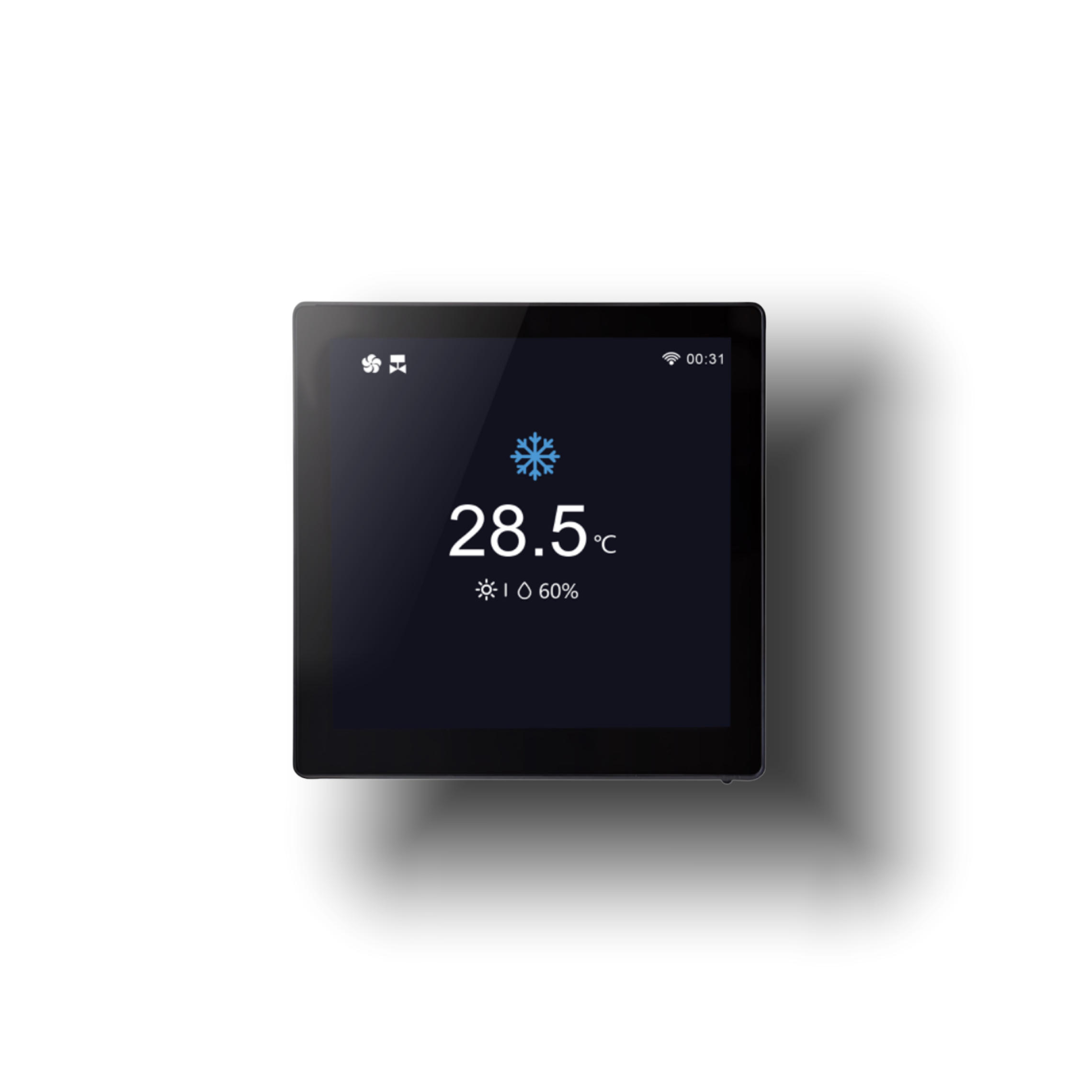

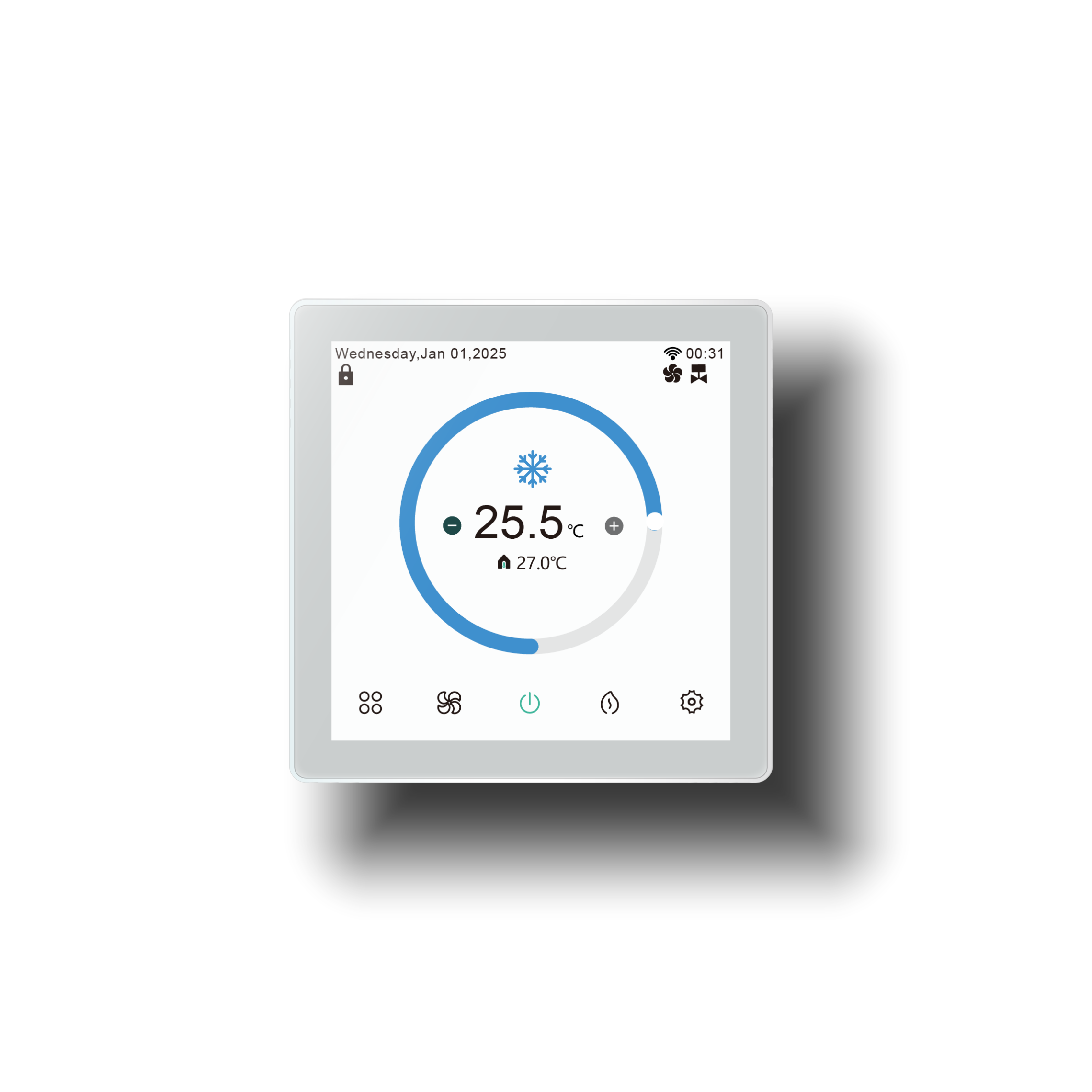

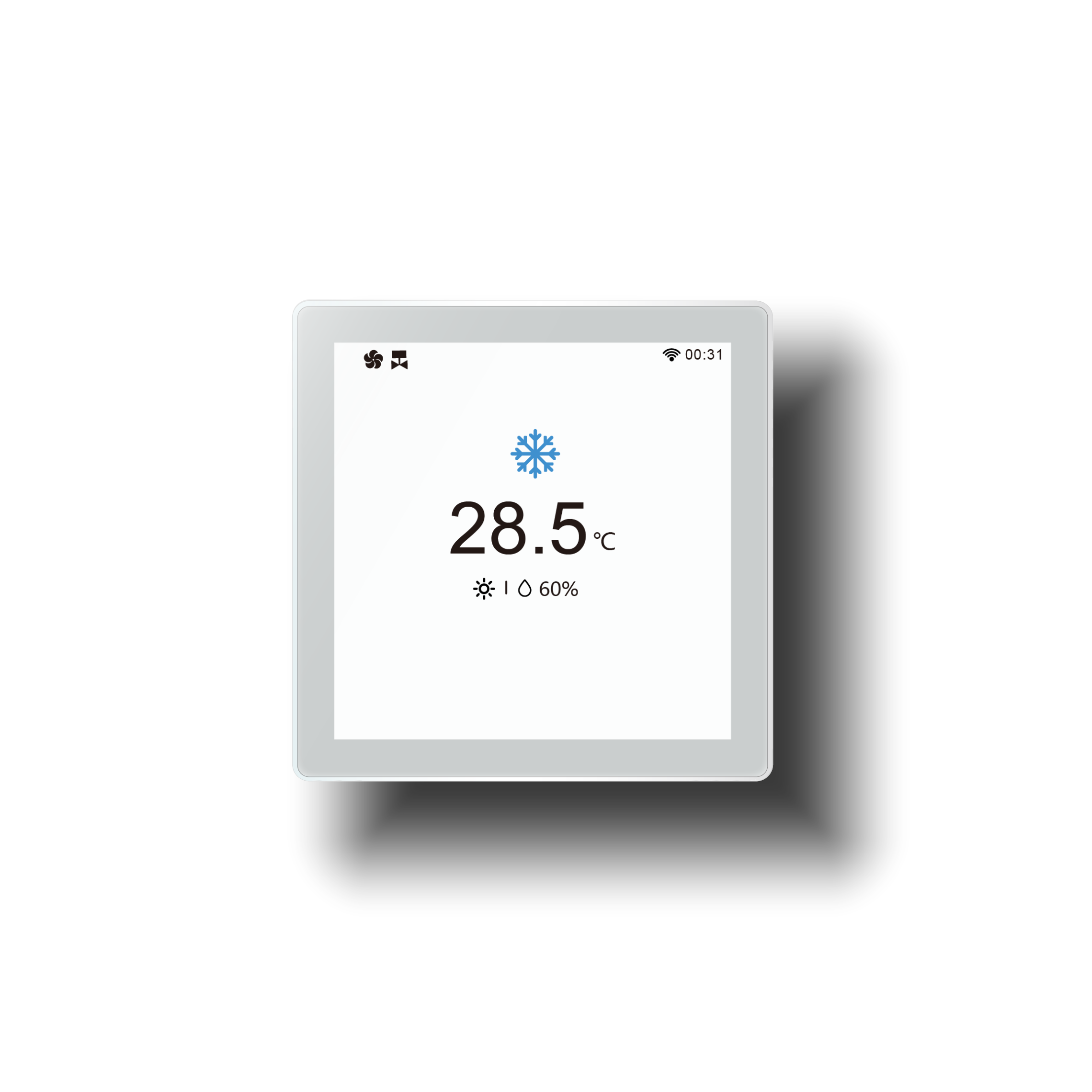

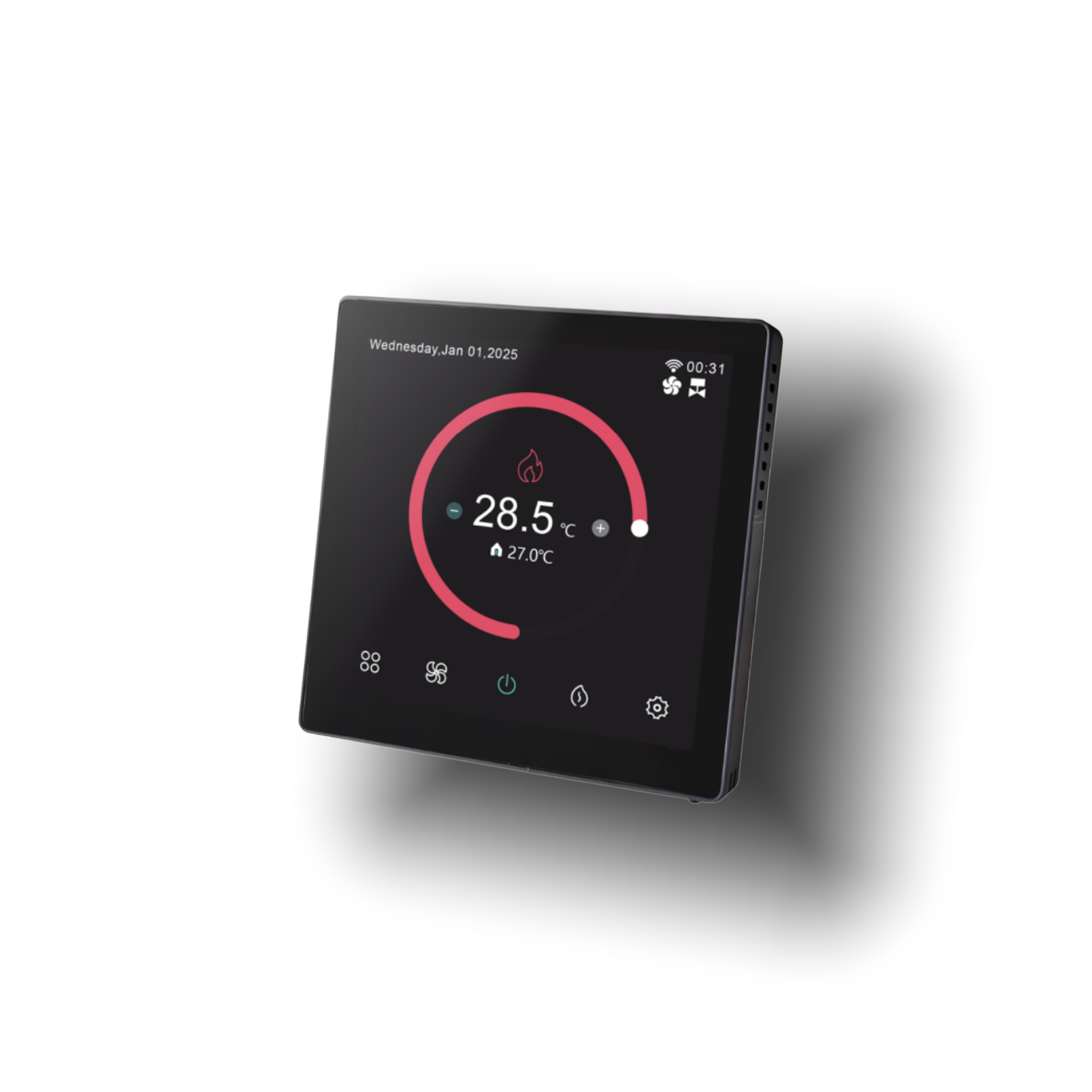

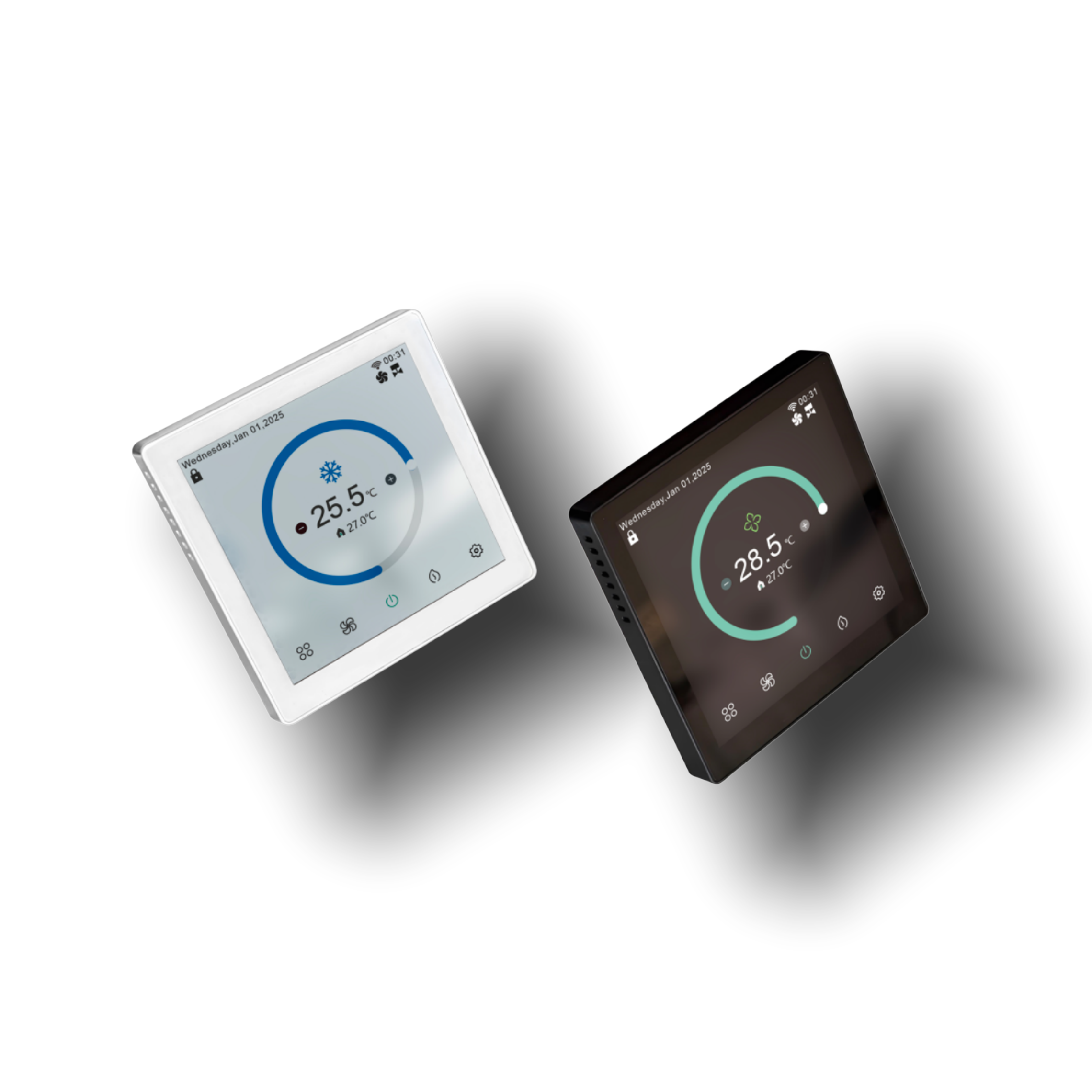

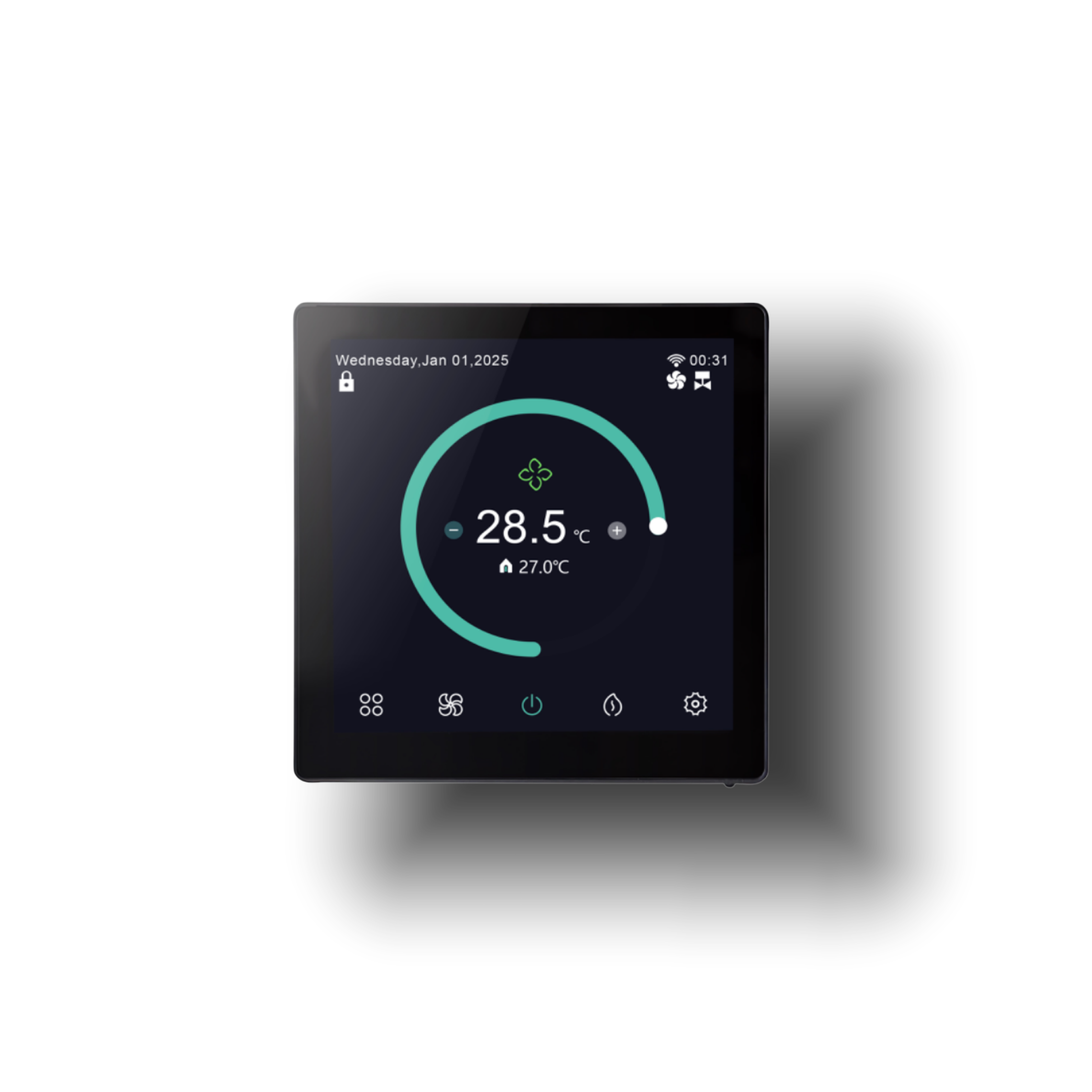

  • The XS-L2 series full-touch screen thermostat uses a TFT display, simple UI design, and more user-friendly interaction, as if you are in the future, and the future has arrived.
  • This product is used for the fan coil system of the water machine system, and can be used for 2-pipe, 4-pipe, 0-10V series air volume cold storage coil systems.
  • Suitable for smart home system, installed in villas, hospitals, office buildings, hotels, shopping malls, and apartments.
Smart Fan Coil Unit Thermosat
Scroll to section
4-inch HD touchscreen, precise remote temperature control
Minimalist design, easy installation, fits any style
Powered by Tuya, professional smart solutions
4-inch HD touchscreen, precise remote temperature control
Minimalist design, easy installation, fits any style
Powered by Tuya, professional smart solutions
4-inch HD touchscreen, precise remote temperature control
Minimalist design, easy installation, fits any style
Powered by Tuya, professional smart solutions
4-inch HD touchscreen, precise remote temperature control
Minimalist design, easy installation, fits any style
Powered by Tuya, professional smart solutions
4-inch HD touchscreen, precise remote temperature control
Minimalist design, easy installation, fits any style
Powered by Tuya, professional smart solutions
4-inch HD touchscreen, precise remote temperature control
Minimalist design, easy installation, fits any style
Powered by Tuya, professional smart solutions
4-inch HD touchscreen, precise remote temperature control
Minimalist design, easy installation, fits any style
Powered by Tuya, professional smart solutions

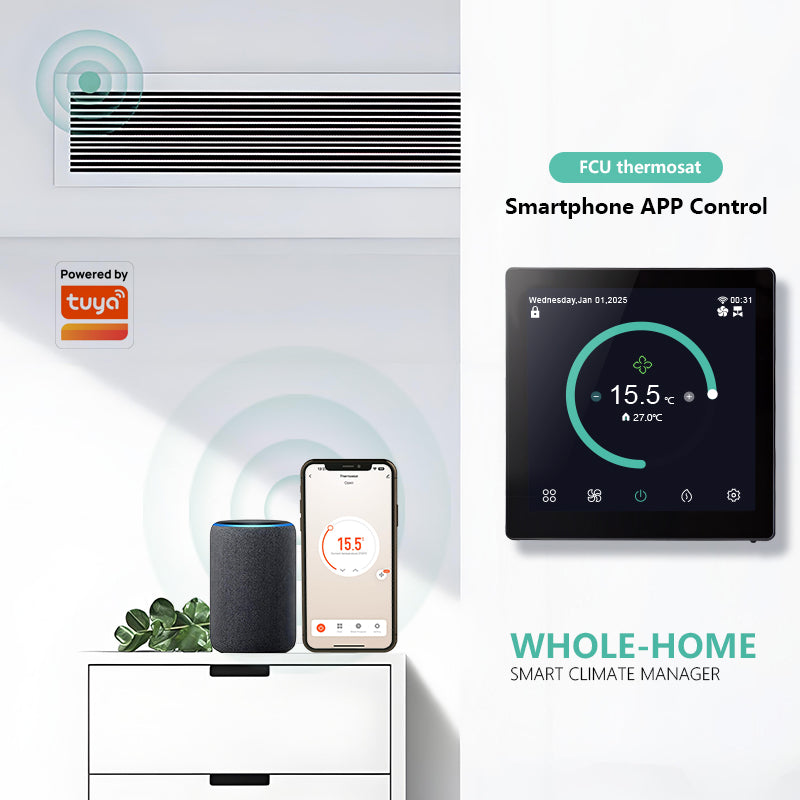

  • Smart Control:​​ Works with the Tuya app for remote control and voice assistants (Alexa, Google Assistant).
  • Large Touchscreen:​​ 4-inch high-resolution display for clear readings and easy operation.
  • Precise Temp Control:​​ High accuracy sensor (±0.5°C) with wide temperature range (5-70°C).
  • Multiple Modes:​​ Supports cooling, heating, and ventilation modes.
  • Sleek Design:​​ Ultra-thin (10mm), scratch-resistant glass panel with fingerprint-resistant coating.
  • Easy Installation:​​ Fits standard wall boxes (86x86mm or 60x60mm) and supports various power inputs.
  • Durable & Safe:​​ Flame-retardant material and low power consumption (<1.5W).

Power supply​: 95-240 VAC, 50-60Hz or 24V DC/AC, 50-60Hz
​Set Temp. Range​: 5-35℃；41-95℉
​Power consumption​: < 1.5W
​Sensor​: NTC 10K
​Timing Error​: < 1%
​Current Load​: 5A for Fan; 3A for valve
​Accuracy​: ±0.5℃
​Ambient Temp​: 0-45℃；32-113℉
​Ambient Humidity​: 5-95% RH (Non-condensing)
​Storage Temp. Range​: 0-70℃；32-158℉
​Shell Material​: PC+ABS (Fireproof)
​Installation Box​: 86 * 86mm Square box or Ø60mm Round Box
​Dimension​: 86mm * 86mm * 40.5mm
​Protection Class​: IP20

More features





Product comparison

Smart Fan Coil Unit Thermosat
Smart Fan Coil Unit Thermosat
Smart Fan Coil Unit Thermosat
Smart Fan Coil Unit Thermosat
Smart Fan Coil Unit Thermosat
Smart Fan Coil Unit Thermosat
Current product Current
Xcessmart

Smart Fan Coil Unit Thermosat

Options
Type 2 Pipe
Color Black
In stock
Descriptions
  • The XS-L2 series full-touch screen thermostat uses a TFT display, simple UI design, and more user-friendly interaction, as if you are in the future, and the future has arrived.
  • This product is used for the fan coil system of the water machine system, and can be used for 2-pipe, 4-pipe, 0-10V series air volume cold storage coil systems.
  • Suitable for smart home system, installed in villas, hospitals, office buildings, hotels, shopping malls, and apartments.

FAQs

This thermostat is designed specifically for Fan Coil Unit (FCU) systems. It is suitable for common two-pipe or four-pipe systems and supports cooling, heating, and fan-only modes (Cool/Heat/Fan). This is clearly highlighted by the labels "T/F Fan coil unit thermostat" and "3-in-1 Modes" in the pictures.

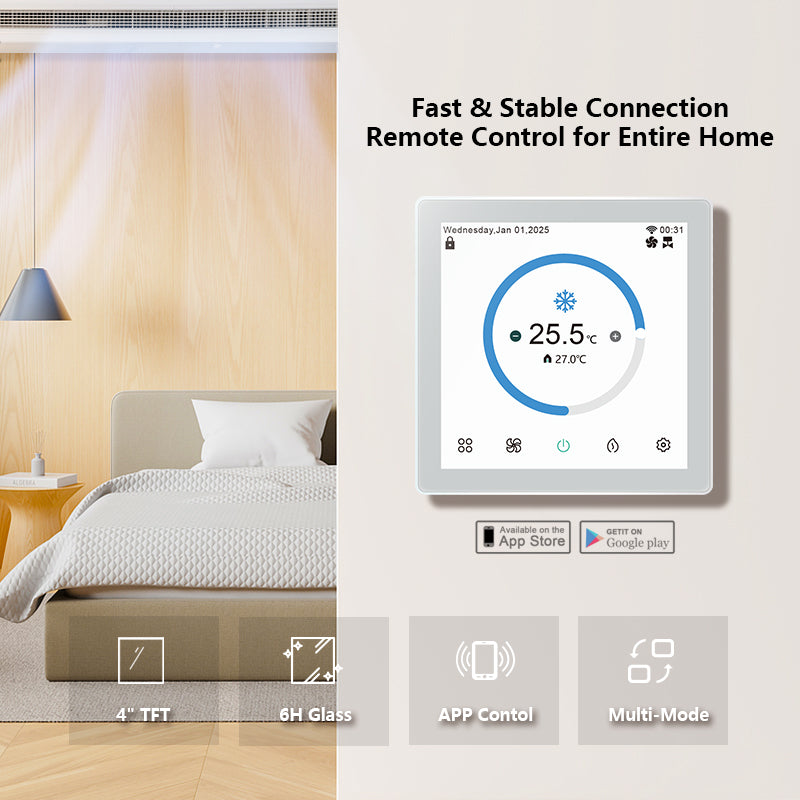

It features a clear and visual 4-inch TFT color screen. The panel uses a 6H hardness glass lens with an anti-fingerprint coating, offering a combination of wear resistance, aesthetic appeal, and ease of cleaning.

According to the previously provided technical parameters, the thermostat's load capacity is 5A for the fan and 3A for the valve. This means it can safely and directly control the fans and water valves of most fan coil units without requiring an intermediate relay.

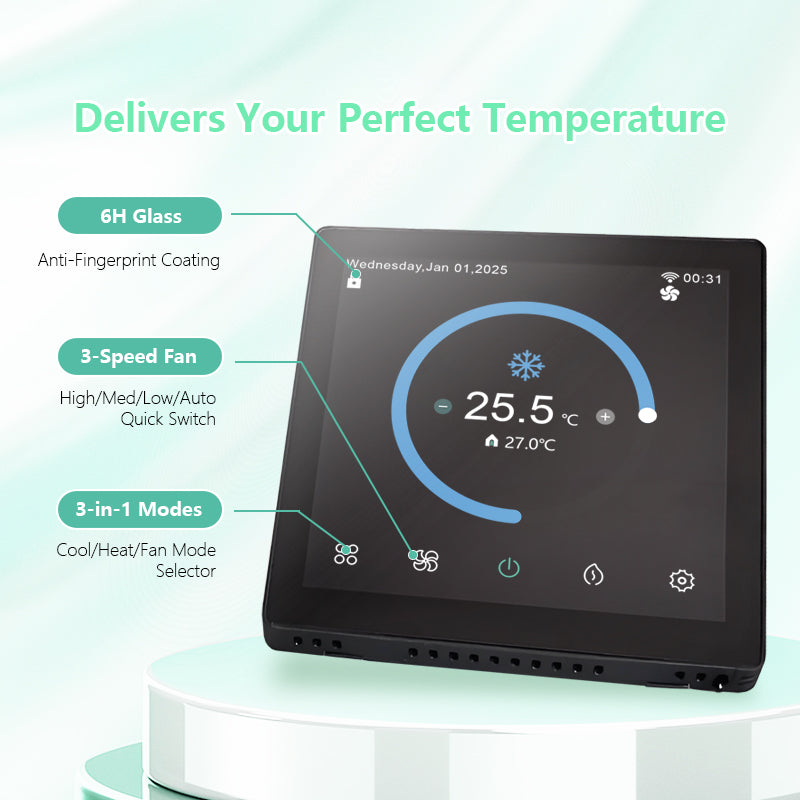

In addition to basic temperature control, it provides 3-speed fan control (High/Med/Low/Auto Quick Switch) and mode selection (Cool/Heat/Fan Mode Selector). All functions can be operated via the touch panel or the mobile app.

It offers flexible power supply options, supporting wide voltage (95-240V AC) and 24V DC/AC. Its operating environment range is 0-45°C with 5%-95% RH (non-condensing), allowing it to adapt to most indoor environments.
